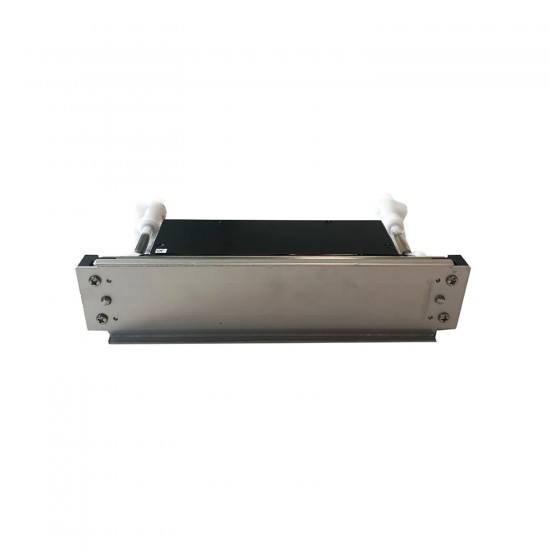

Kyocera KJ4A-AA06ATZ-DL1V-4A print head
- Stock: 1000
- Model: KJ4A-AA06ATZ-DL1V-4A
- Weight: 1.50kg
- SKU: 01.09.01.001.006
Kyocera KJ4A-AA06ATZ-DL1V-4A Printhead Description
A small number of Kyocera printheads can achieve wide-format printing. The wide-format structure of 108mm can achieve wide-format printing with a small number of print heads. It greatly saves cumbersome position adjustments, and the piping and wiring design also becomes easier.
Kyocera KJ4A-AA printhead features a maximum drive frequency of 20kHz, achieving high-quality output with a small drop volume of 3pl at 50 m/min. It is suitable for a wide range of applications including label and packaging, sign graphics, etc. due to its compatibility with UV and other high-viscosity inks.
With the built-in filter’s help, foreign products are removed; the built-in heater corrects the influence of ambient temperature changes. The unique flow path design ensures stable jetting of 2656 nozzles and reduces non-jetting during continuous printing.
Kyocera KJ4A-AA06ATZ-DL1V-4A Printhead Specifications
|
Number of Nozzles |
2656 (2558) |
|
|
Effective Print Width (mm) |
108.25 |
|
|
Ink |
UV |
|
|
Maximum Drive Frequency (kHz) |
20 |
|
|
Resolution (dpi) |
600dpi*600dpi |
|
|
Print Speed *1 (m/min) |
50.8 |
|
|
Print Speed*1 (pl) |
Minimum |
3 |
|
Maximum |
17 |
|
|
Nozzle Recirculation |
No |
|
|
Width*Length*Height (mm) |
200*25*57.9 |
|
|
Recommended Ink Viscosity*2 (mPa * s) |
6.0~7.0 |
|
Printer Compatibility
Dilli NEO SUN HB 2504D-W2XL, NEO SUN HB 2504 D-DXL
