H·EASY H1816 Digital Fabric Printer
-550x550w.jpg "H·EASY H1816 Digital Fabric Printer")
-550x550w.jpg "H·EASY H1816 Digital Fabric Printer")
-550x550w.jpg "H·EASY H1816 Digital Fabric Printer")
-550x550w.jpg "H·EASY H1816 Digital Fabric Printer")
-80x80w.jpg "H·EASY H1816 Digital Fabric Printer")
-80x80w.jpg "H·EASY H1816 Digital Fabric Printer")
-80x80w.jpg "H·EASY H1816 Digital Fabric Printer")
-80x80w.jpg "H·EASY H1816 Digital Fabric Printer")
- Stock: 100000
- Model: H1816
- Weight: 7,500.00kg
- Dimensions: 5,300.00mm x 3,450.00mm x 2,220.00mm
- SKU: 03.01.01.001.003
| More information | |||
| PIR software | Neostampa / Texprint | Printing part introduction | Auto dry & taking up system, auto belt cleaning system, movable press roller for feeding, avoid the imprint. |
| Ink type | Reactive, disperse ink, pigment(8 colors) | Print head height | Height adjustable 1.5~30mm, to adapt medium of different thickness. |
| Power voltage | 380V, 3L+N+G(with independent reliable effective earth wire) | Power frequency | 50HZ / 60HZ +-1HZ |
| Power Consumption | Pinter 10KW,electric dryer 20KY(steam dryer 4KW) | Workshop Condition | Temperature:20-30°C, humidity: 50-65% |
Suitable for all types of knitted and woven fabrics, the digital textile printer for fabric printing.
It is a versatile and high-quality printing solution.
This fabric printing machine, a T-shirt printing machine, a digital printing machine, or a digital textile printer, offers exceptional results for all your printing needs.
This inkjet printer is the perfect choice whether you're looking to print on large format materials, T-shirts, or other textiles.
With its eco-solvent technology, flatbed design, and UV printing capabilities, this textile printer is a reliable and efficient option for any printing project.
Experience the convenience and precision of digital fabric printing with the digital textile printer.
Samples

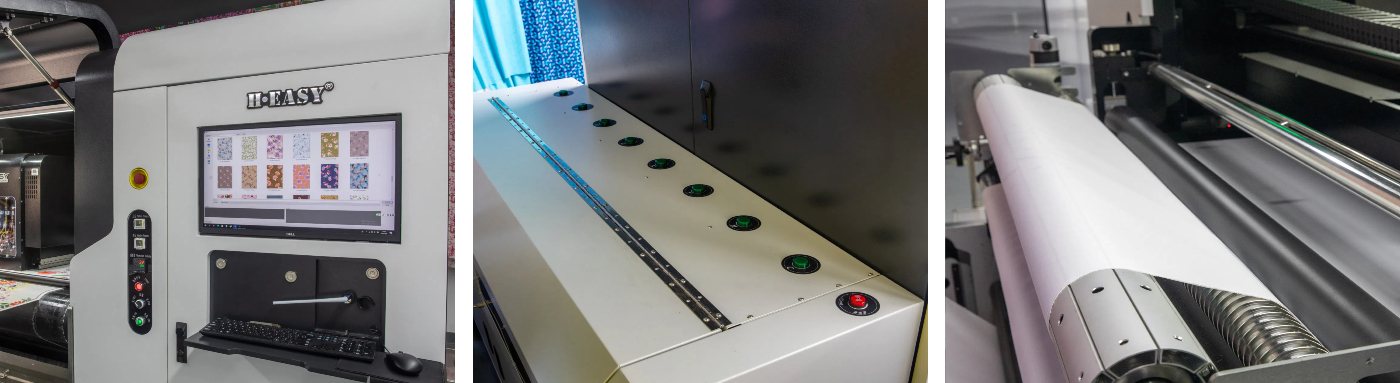

FUNCTIONAL
CHARACTERISTICS
Printing Control System:
> Negative pressure control system for the print head.
> Professional textile printing RIP software:
NEOSTAMPA / TEXPRINT.
High precision Belt Moving System:
> Large diameter rollers for high-speed digital printing machines.
> Efficient and stable belt anti-deviation system.
> Precise mobbing step control.

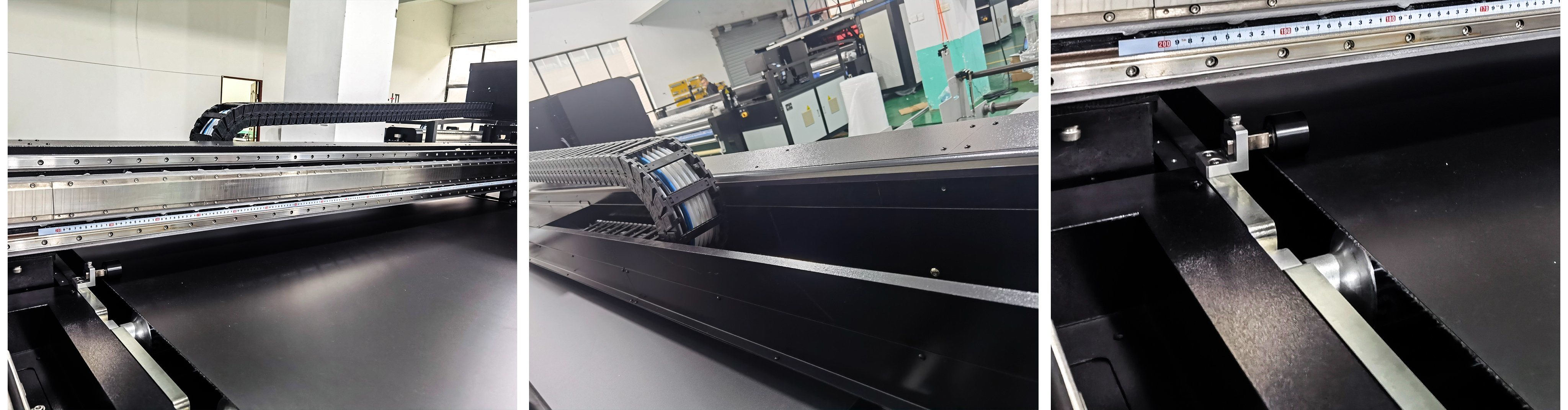

Precision, strong& stable structure:
> Formed steel construction, strong and stable.
> Steel beam structure, Linear motor, double THK linear guide rail, carriage moving precise and smoothly, low noise.
> High-precision plate for printheads, fast & convenient for installing and replacing the printhead. Precision 0.001mm.
Capacity of production and application:
| Condition | printhead | spray nozzle | Print Width | Rated ignition frequency | Actual ignition frequency | Lateral moving speed of trolley | 16 head equipment, 2 pass capacity |
| New | Ricoh G5 | 1280 | 54MM | 20KHZ-30KHZ | 24KHZ | 1.2M/S 508DPI | 267M/H |
| New | Ricoh G6 | 1280 | 54MM | 50KHZ-60KHZ | 36KHZ-42KHZ | 1.44M/S-1.7M/S 635DPI | 310-366M/H |
TRANSPORTATION AND AFTER-SALES SERVICE
1. Wooden case, by sea;
2. Warranty: 1-year machine warranty, excluding printhead warranty (using our ink can provide printhead warranty);
3. After sales: regions without agents: professional skill training will be provided in the early stage,
and professional after-sales personnel will provide online guidance when there are problems;
New training will be conducted on the machine every year.
OUR ADVANTAGES
1. Low usage cost.
2. Low maintenance cost (normal shutdown during holidays and non-production).
3. Long service life cycle of the printhead (average use over 3+ years).
4. The same number of Ricoh printheads are configured, with a capacity and resolution 20% higher than that of peers.
5. The team has more than 20 years of digital printing industry practitioners.
6. Digital printing machine with Ricoh printing head produced since 2013.
7. Research and development of Ricoh drive board since 2014.
8. The equipment adopts high-precision integrated molding base plate printheads and integral frame base machine body.
