UV DTF Machine 30cm i3200*1

Model number of the machine

UVDTF30

Print head configuration

EPSONI3200-U1HD*1

Print head ejection force range

2-3mm

Number of nozzle rows

3200 pcs

Distance between nozzles

1/300 inch

Rows of nozzles

8

Maximum number of ink colors supported

8

Maximum number of ink colors supported

Ink droplet ejection performance(ink droplet volume and ejectionfrequency)

2 levels of grayscale

5pl(43.2kHz)

3 levels of grayscale

6.0-12.5 pl(21.6kHz)

4 levels of grayscale

3.8-6.2-9.3pl(21.6kHz)

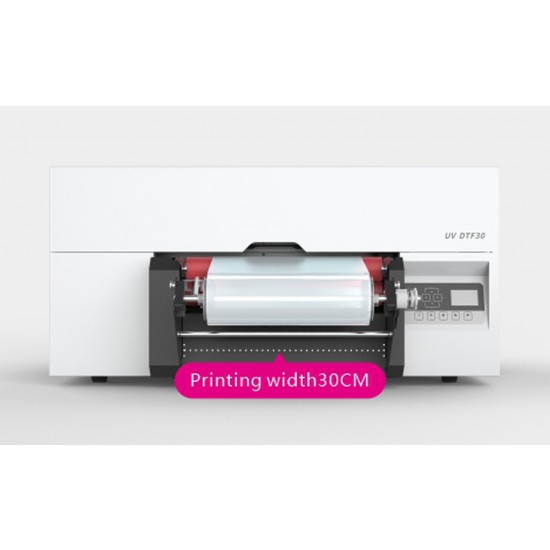

Printing width

30cm

Printing depth

0-1mm

Printing pattern

White and color and varnish print at same time

Printing mode

KCMY+W+V

Resolution

960x1200dpi/960x900dpi

Machine size

length*width*height

919mm*980mm*450mm

Net weight

75kg

Packaging size

length*width*height

1.12m*1.12m*0.6m

Gross weight

100kg

Printing software

Future RIP

Applicable materials

DTF AB film, release film、 advertising soft roll material etc.

Printing speed range

0.76-7.2m/h

Text format

Tiff,Jpg.Eps,Pdf

Connection mode

Network cable

Power supply and voltage

AC220+10，50HZ-60HZ

Rated power

Maximum 404

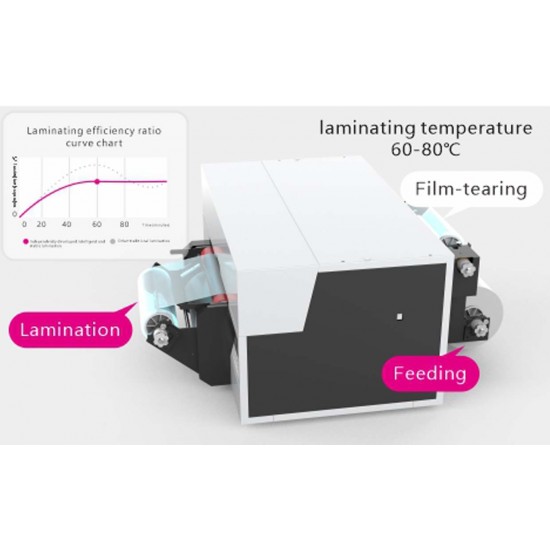

Pressing temperature

60-80*C

Working Environment

Temperature:20℃-28*C

Humidity:35%-65%

Operation condition

Dust

Avoid dusty environment

Light

Avoid direct sunlight

Ink type

UV DTF special uv ink
